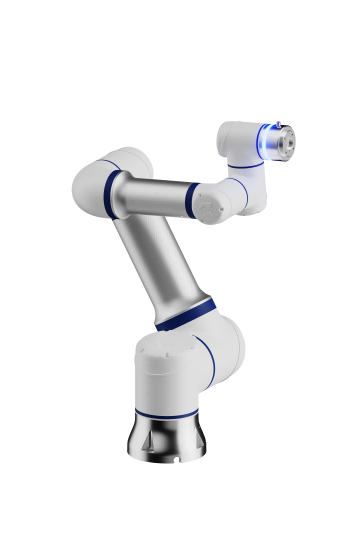

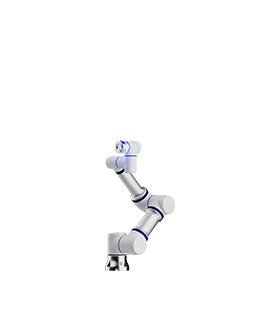

The CS618F is part of Elite Robots' CSF Force-Control series — an upgraded force-sensing collaborative robot built on the proven CS platform. With an 18 kg payload and 900 mm reach, it integrates a proprietary six-axis force/torque sensor directly at the tool end, delivering high-precision force detection for demanding industrial applications.

The built-in force sensor enables high-sensitivity tool collision detection, making human-robot collaboration safer and more responsive. During manual teaching, the arm accurately senses contact between the workpiece and equipment, effectively protecting both the part and the tooling.

High constant-force tracking accuracy makes the CS618F ideal for complex curved-surface operations such as precision grinding, polishing, and adhesive dispensing. Its open interfaces and strong compatibility support secondary development, providing efficient and safe solutions for industrial production.

As a member of the CSF series, the CS618F combines the ease-of-use and safety of the standard CS line with advanced force-control capabilities, enabling seamless integration into automated finishing and assembly workflows.

• Payload: 18 kg

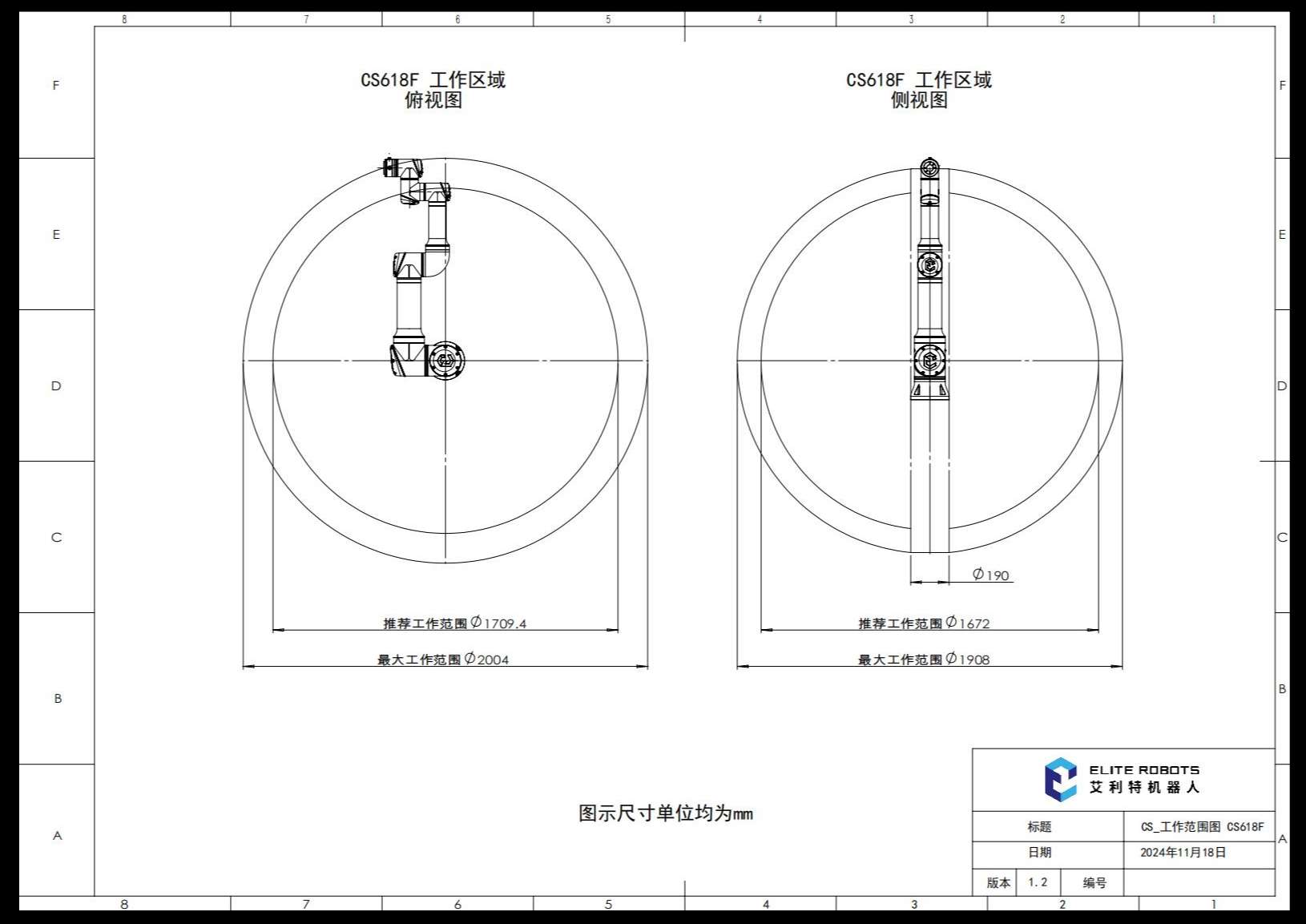

• Reach: 900 mm
• Degrees of Freedom: 6

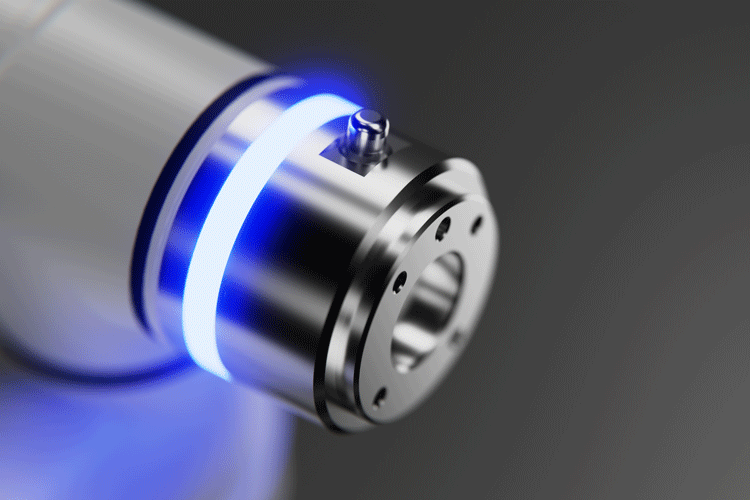

• Built-in 6-axis force/torque sensor at tool end
• High constant-force tracking accuracy
• High-sensitivity tool collision detection
• Applications: grinding, polishing, adhesive dispensing, assembly
• Open interfaces supporting secondary development
• Series: CSF Force-Control Series
