Product Description
The EFORT ARC series are 6-axis industrial welding robots engineered for high-precision arc welding applications. Combining a compact, lightweight arm design with the S-type controller, these robots deliver consistent weld quality across automotive, metal fabrication, and general manufacturing environments.

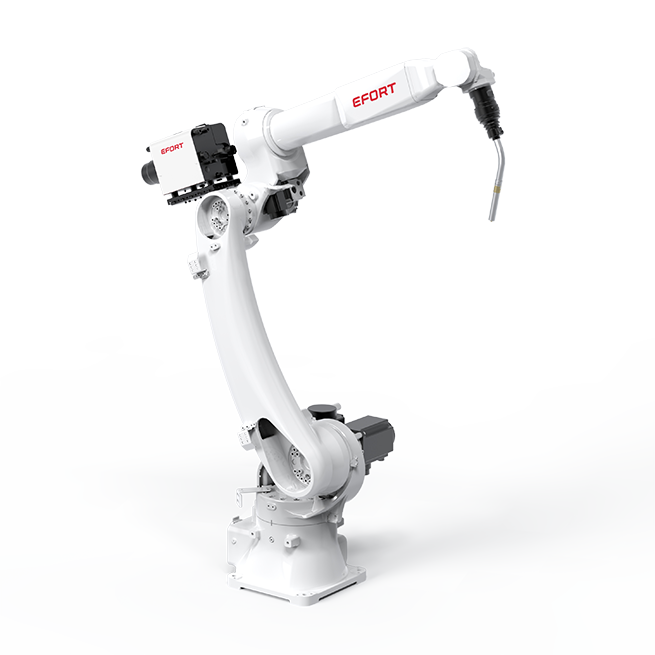

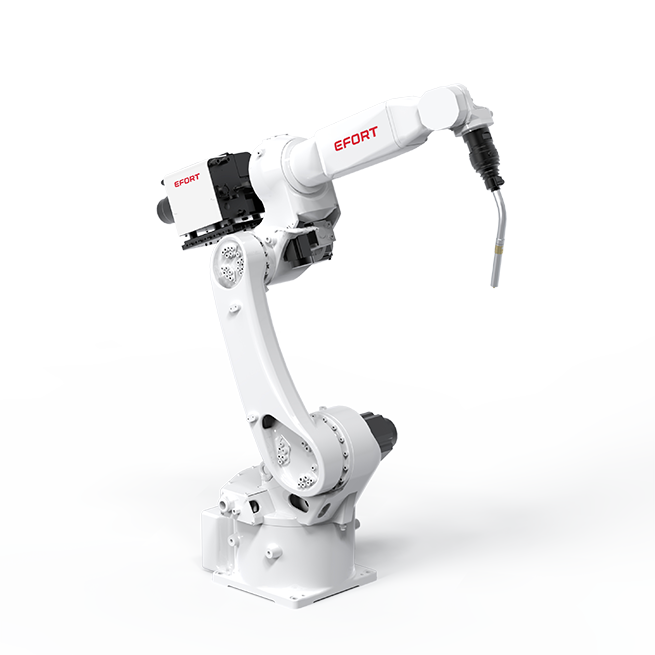

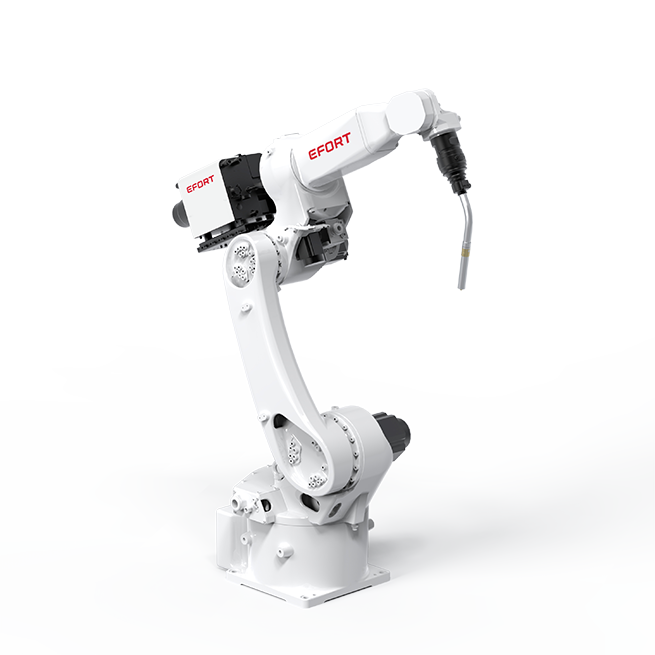

The series includes three models — ARC10-1600, ARC12-1400, and ARC12-2000 — offering wrist payload capacities of 10–12 kg and reach radii from 1,479 mm up to 2,025 mm, providing flexible coverage for a wide range of workpiece sizes and welding cell layouts.
All models feature 6-axis articulation for maximum positional flexibility and are paired with EFORT's S-type control cabinet, enabling seamless integration into automated welding lines and smart manufacturing systems.
- Models: ARC10-1600, ARC12-1400, ARC12-2000
- Wrist payload: 10 kg (ARC10-1600) / 12 kg (ARC12-1400, ARC12-2000)
- Reach radius: 1,604 mm (ARC10-1600) / 1,479 mm (ARC12-1400) / 2,025 mm (ARC12-2000)
- Number of axes: 6
- Controller: S-type control cabinet
- Application: Arc welding
