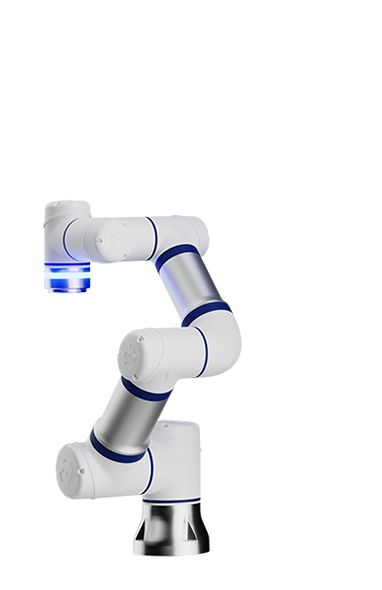

The CS63 is a 6-axis collaborative robot arm from Elite Robots' CS Series, designed for intelligent manufacturing environments. With a 3 kg payload and 634 mm reach, it delivers precise, repeatable performance in a compact footprint suitable for tight workspaces and human-robot collaboration.

Safety is built in at every level: the CS63 features high-sensitivity collision detection and the industry-leading IP68 ingress protection rating across the entire CS series, making it suitable for demanding or wet environments. All joints are fully sealed for reliable long-term operation.

Ease of use is a core design principle — the CS63 supports drag-and-drop teaching (lead-through programming), enabling fast deployment without specialized robotics expertise. An open, intelligent application development platform supports multiple fieldbus communication protocols for seamless integration into existing automation systems.

The CS63 offers high-speed bus communication and rich I/O ports, making it an ideal choice for assembly, inspection, dispensing, and other precision tasks in smart manufacturing, medical, education, and service industries.

• Payload: 3 kg

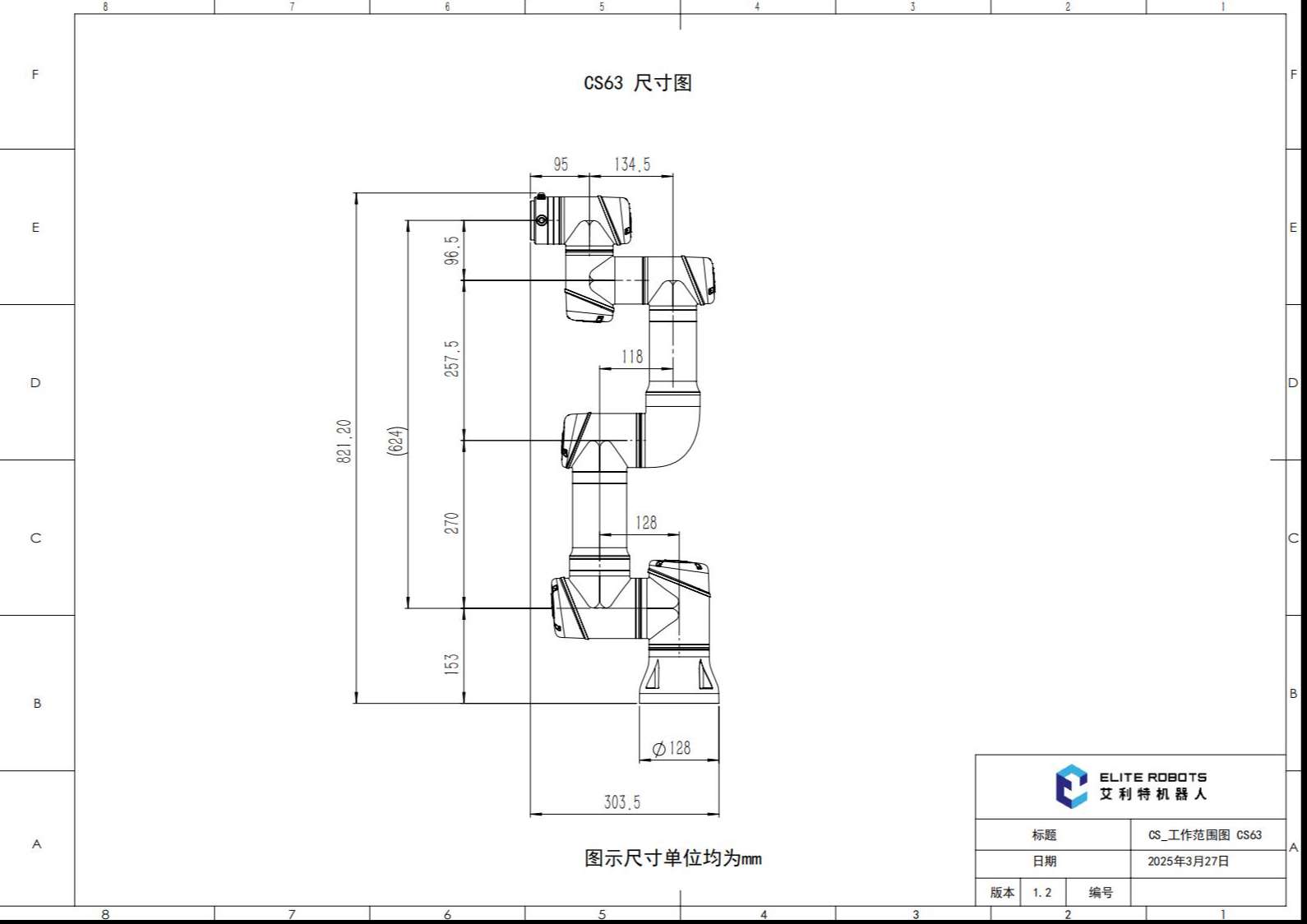

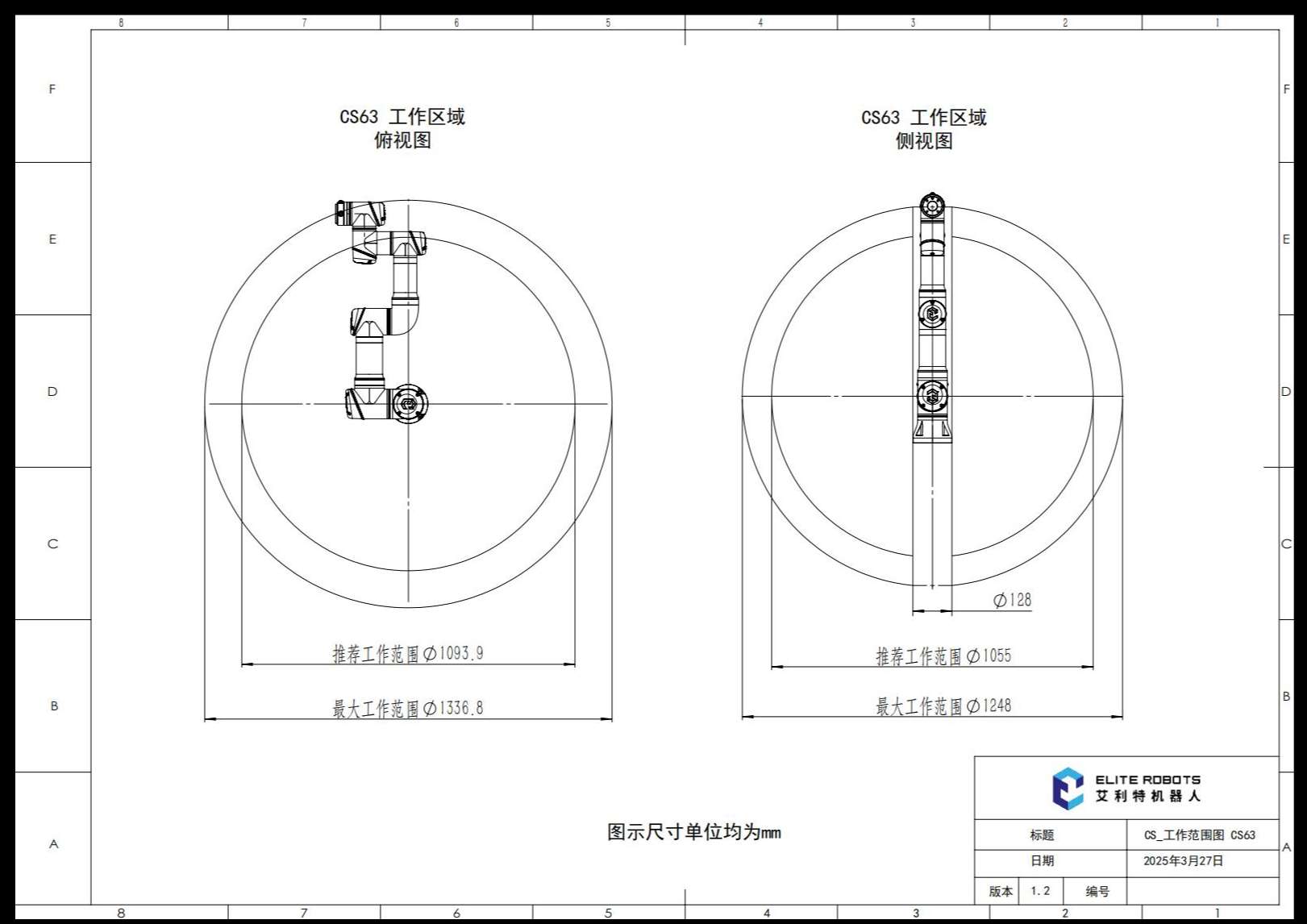

• Reach: 634 mm
• Degrees of Freedom: 6
• Repeatability: ±0.03 mm
• Ingress Protection: IP68 (entire series)
• Collision detection: High-sensitivity
• Teaching method: Drag-and-drop (lead-through)
• Communication: Multi-fieldbus support

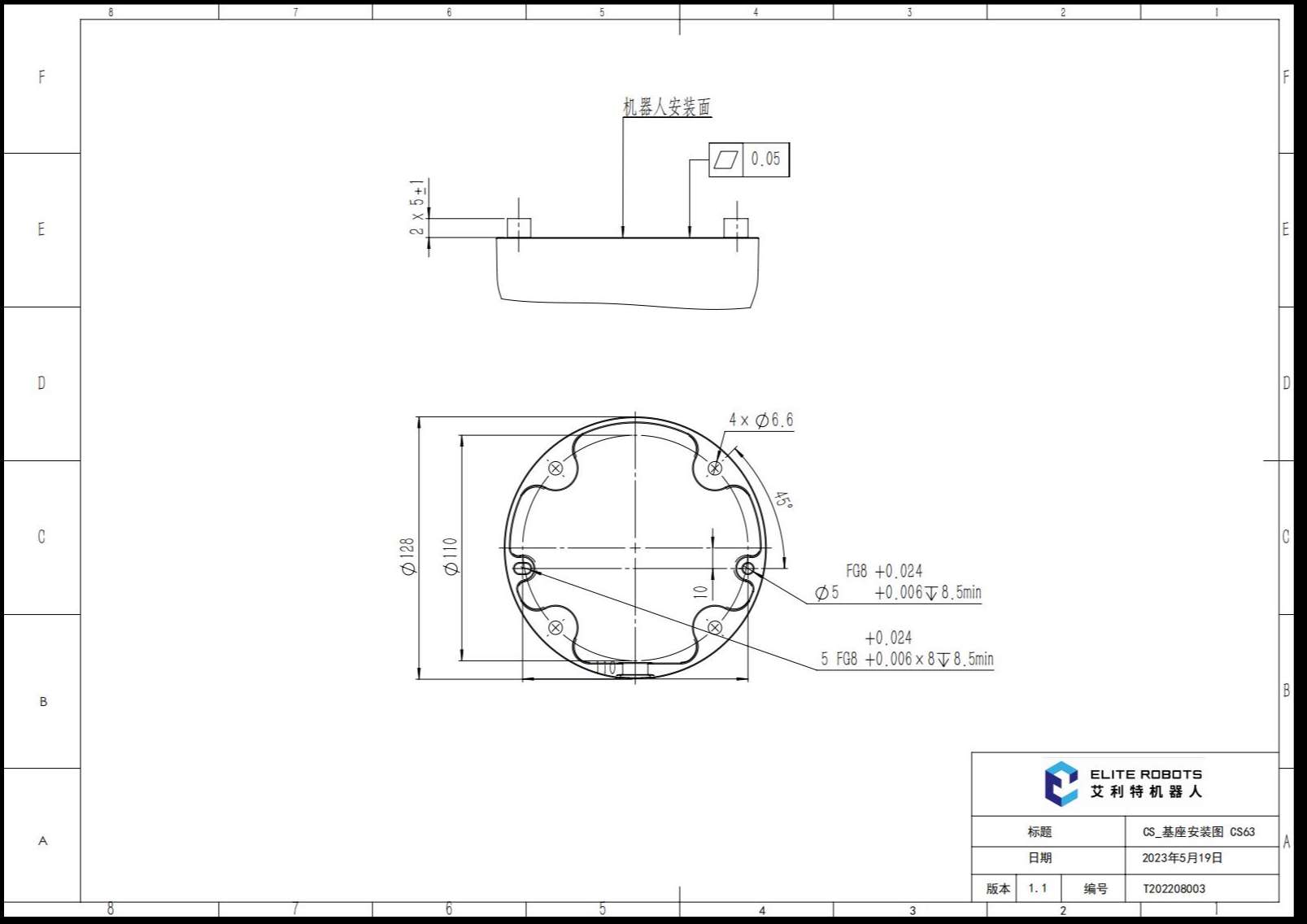

• Mounting: Floor, ceiling, wall (see base mounting diagram)
• Application: Collaborative (human-robot coexistence)
