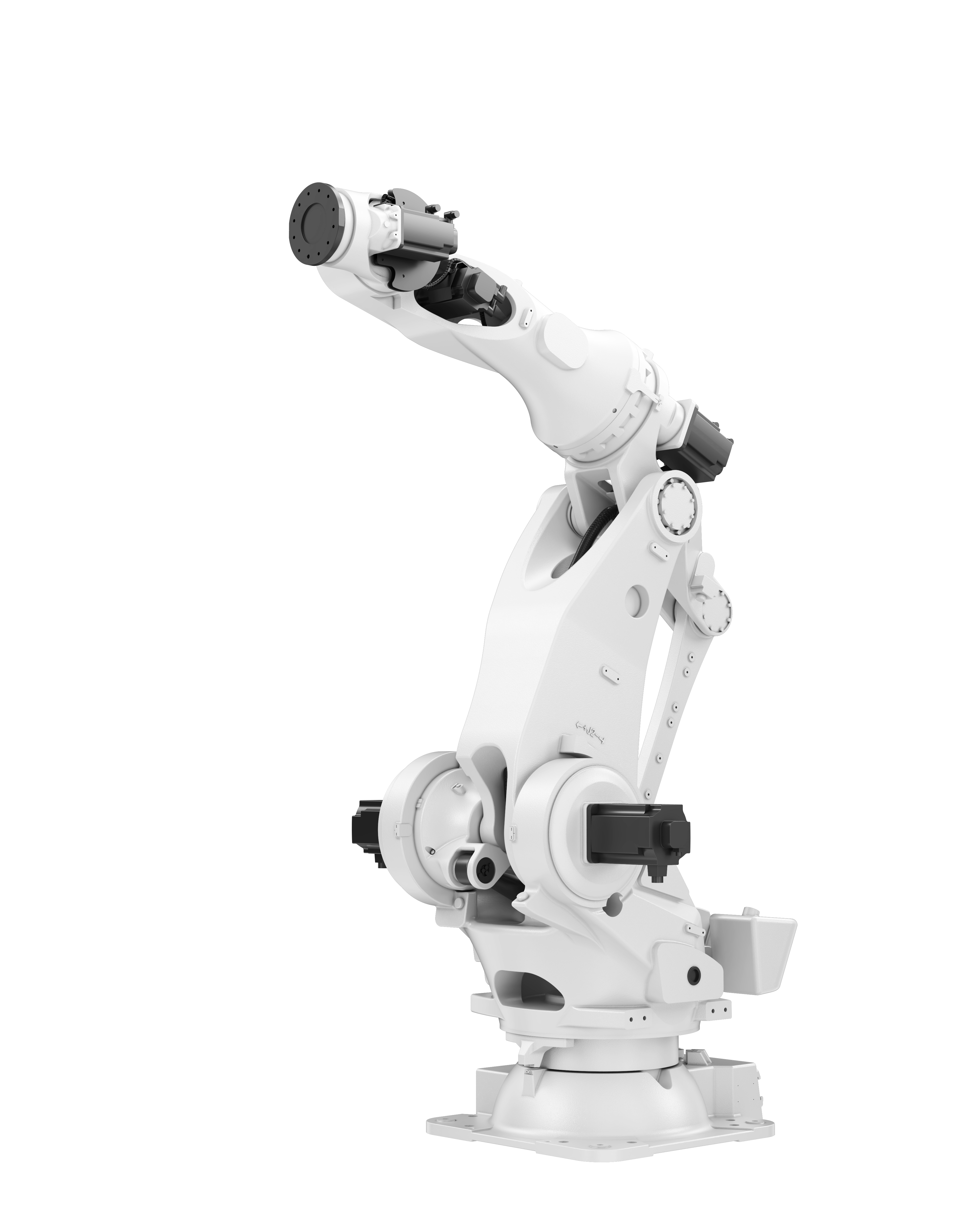

The ESTUN iER700-2800 is an ultra-heavy-payload 6-axis industrial robot designed for the most demanding manufacturing applications. With a maximum payload capacity of 700 kg and a reach of 2,800 mm, it delivers exceptional strength and precision for large-scale material handling, press tending, and heavy assembly tasks.

Built on ESTUN's proven iER platform, the iER700-2800 features a rigid, high-rigidity arm structure that ensures outstanding repeatability and stability even under full load. Its optimized joint design minimizes deflection and maximizes dynamic performance across the full working envelope.

The robot integrates seamlessly with ESTUN's full automation ecosystem, including ESTUN servo drives, motion controllers, and process software packages, enabling turnkey solutions for automotive, steel, and heavy industry applications.

Engineered for reliability in harsh industrial environments, the iER700-2800 supports a wide range of end-of-arm tooling configurations and can be deployed in floor, inverted, or wall-mount orientations to maximize production flexibility.

• Payload: 700 kg

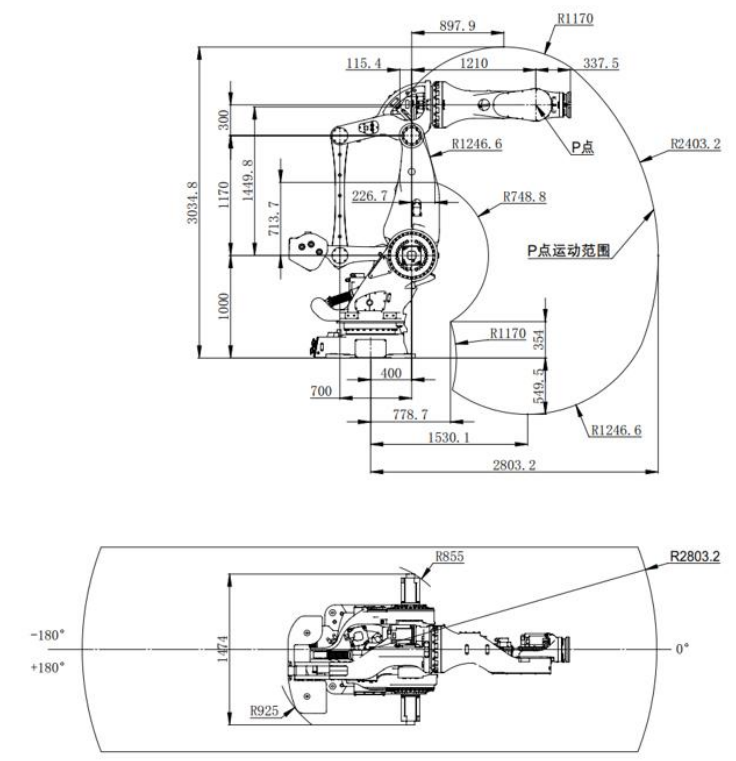

• Reach: 2,800 mm
• Axes: 6
• Series: Ultra-Heavy Payload (超大负载系列)
• Repeatability: ±0.2 mm
• Installation: Floor mount
